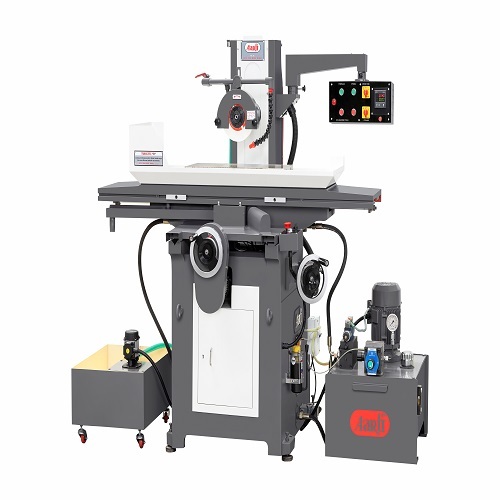

Vertical Hydraulic Surface Grinding Machine

Vertical Hydraulic Surface Grinding Machine
Vertical Hydraulic Surface Grinding Machine
Product Code : 01
Brand Name : Aarti
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Kilometer/Kilometers
  • Price Range
  • 60000 - 1500000
Product Specifications
  • Product Type
  • SURFACE GRINDER
  • General Use
  • GRINDING
  • Material
  • Cast Iron
  • Type
  • Surface Grinding Machine
  • Computerized
  • No
  • Automatic
  • Yes
  • CNC Or Not
  • Normal
  • Control System
  • Manual
  • Table Slide Way
  • V Type Rail
Product Description

Owing to the profound experience in this domain, we are manufacturing, supplying and exporting Hydraulic Surface Grinding Machine. These machines are manufactured using qualitative components that are nicely fitted, as per the international guidelines. Offered machines are known for their tough construction, abrasion resistance, low maintenance, perfect finish and operational accuracy. Moreover, our manufactured Hydraulic Surface Grinding Machine passes through various quality checking tests, ensuring the best outcome.

Other information:

  • The Wheel Head: The Hardened, Precisely Ground Stabilized grinding wheel Spindle is Supported in Two Match pairs of super precision bearings, ensuring trouble free services for a long life, The Spindle assembly is cartridge type unit fitted with imported super precision bearings grease packed with imported ISOFLEX NBU 15 grease to have long trouble free service; the spindle is directly coupled to the motor with flexible coupling to have positive power transmission and there is no belt to avoid belt tension. Effect of belt on surface finish is also avoided. Wheel head Assembly is Mounted on Box Type Heavy Column and Enclosed. Guide way with Sheet Metal cover to keep them dust free. All the guide way surface of the Saddle, Table, Column and slide are Precisely hand Scraped to achieve Maximum accuracy and Surface finish, TURCITE - 'B' lining on Reciprocating Table Guide ways and also on Cross slide.
  • The Hydraulic Power Pack: Separate Hydraulic Power Pack is duly fitted with 24 w. DC Pielot operated Solenoid valve.
  • The Vertical Feed: The Vertical Feed is through a hand wheel which has least count of 0.002 mm. Rapid Movement of the wheel head is Made Possible by a Separate motor, A safety switch stops the motor when the highest Vertical position reached.
  • The Cross Feed: The cross Feed is through a lead screw and Nut. The automatic cross Feed at every reversal of the table is provided through an electric motor engaged with Gear mechanism and controlled by a solid state electronic system. The cross Feed is infinitely variably variable, to get desirable accuracy and surface finish.
SPECIFICATIONS

CAPACITY   HYDRAULIC
Max. table size MM 500 x 200
Max. longitudinal travel MM 550
Max. cross traverse MM 225
Max. Spindle centre height above table MM 525
Max. table speed M / Min 14
Power Cross traverse MM / Min 2000
Auto cross feed at-each table reversal MM 0.5 -5.0
Vertical feed Up & Down MM / Min 200
Least count of vertical Feed hand wheel MM 0.002
GRINDING HEAD
Size of grinding wheel
MM 200 x 20 x 50.8
Spindle motor HP 2
Speed of Grinding wheel RPM 2800
HYDRAULIC SYSTEM
Working pressure
Kg/Cm2 10
Hydraulic Motor HP 1
Tank capacity Liters 60
Vertical Motor HP 0.5

Standard Accessories
  • Permanent magnetic chuck
  • Grinding wheel
  • Grinding wheel flange unit
  • Wheel balancing mandrel
  • Wheel balancing stand
  • Table guard & coolant outlet
  • Set of wrenches
  • Electirc motor
  • All internal wiring & control gear
  • Table mounted wheel dressing block
Extra Accessories
  • Coolant equipment
  • Machine lamp (230 v ac)
  • Wheel flange unit
Note: As improvement are made from time to time. These specification are subject to change without notice and are not binding on us. inspection at our sight before delivery, Subjects to Rajkot Jurisdiction.
Trade Information
  • Payment Terms
  • Cheque
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 3 Months
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • WOODEN BOX PACKING WOODEN PELLET AS PER REQUIREMENT OF CLIENT
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India
  • Certifications
  • D & B NO.86-018-4869 NSIC NO.26738
