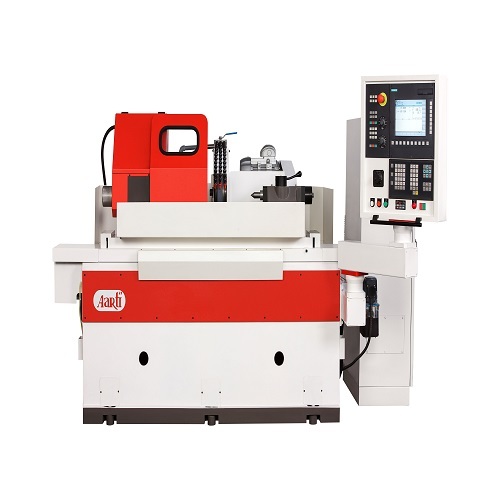

CNC CYLINDRICAL GRINDING MACHINE

CNC CYLINDRICAL GRINDING MACHINE
CNC CYLINDRICAL GRINDING MACHINE
Product Code : CCGM
Brand Name : Aarti
Product Description

CNC CYLINDRICAL GRINDING MACHINE

SPECIFICATION UNITS 600 MM 1000 MM
CAPACITY
Max. Grinding Diameter mm 150 150
Max. Grinding Length mm 600 1000
Max. Weight Of The Job Kg. 50 70
WORK HEAD
Center Height mm 165 165
Spindle Nose MT 4 4
Spindle Speed (Infinitely Variable) Rpm 30-600 30-600
Spindle Motor Power H.P. 1 1
Max. Swivel DEG. + 45 + 45
GRINDING SPINDLE
Cartridge Type Grinding Spindle Rpm 1750 1750
Peripheral (Surface) Speed M/sec 30 30
Grinding Wheel Size (OD x Width x ID) mm 400x50x127 400x50x127
Spindle Motor Power KW/H.P. 3.75/5 3.75/5
AXIS
X Axis Stroke mm 175 175
Z Axis Stroke mm 750 1150
Rapid Feed Rate For X & Z Axis M/min 15 15
Minimum Resolution mm 0.001 0.001
Axis Servo Motor Power X/Z Nm 06/08/16 06/11/16
TAIL STOCK
Center Taper MT 4 4
Quill Travel mm 25 25
ELECTRICAL
Total Connected Load HP
15 15
Supply Voltage
3 Ph. 415 V AC 50 HZ
FLOOR PLAN
Space Area (L x W Approx) mm 3000x2000 4500x2000
Weight of Machine (Approx) Kg. 3250 4500

SALIENT FEATURES:-

  • Structure : All major structure parts are manufactured by high grade casting heavily ribbed for higher rigidity & better damping characteristic.
  • X and Z Axis precision manual scraped V and flat guide ways coated with Turcite-B.


Standard Features & Accessories : AC servo Axis drive for X and Z.

  • Servmotor with IP 65 protection.
  • Precision ground ball screw for both Axis.
  • Cartridge type grinding spindle.
  • Auto manual coolant system.
  • Cool ant tank with magnetic coolant separator.
  • Wheel balancing arbour.


Controller Specifications : Siemens 802D GN2 Axis servo-controller with standard built-in grinding cycles.

  • Simultaneous 2 Axis control, grinding cycles/dressing cycles.
  • RS 232 C serial interface port. CF Card Interface, Inch/Metric Switchable.
  • Pitch error & back lash compensation.
  • G code/M code compatibility with NC builders.
  • Electronic handwheel.


Optional Accessories :

  • V-needle slide.
  • Liner glass scale.
  • In process gauging system, flagging probe, air gap eliminator & crash detector.
  • Paper band with magnetic coolant filtration system.
  • Wheel head motor with VFD for constant surface speed.
  • Grinding wheel 50x 5x 203.2 mm. with 5.5 KW motor.
  • Servvoltage stabilizer.
  • Fanuc Controller.
