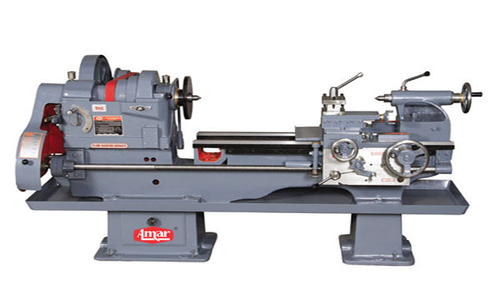

Heavy Duty Precision Lathe Machine

<< Previous

Send Inquiry

Product Code : PL

Price And Quantity

Product Specifications

Automatic Grade
Automatic
Feature
Simple Control, High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency, Stable Performance

Product Description

ID	Particulars	Amar 0	Amar 1	Amar 2	Amar 3	Amar 4
1	Length of Bed	1675 mm	2130 mm	2740 mm	3050 mm	3650 mm
2	Admit Between Centre	500 mm	965 mm	1575 mm	1905 mm	2515 mm
3	Height of Centre Over flat bed Ways.	255 mm	255 mm	255 mm	255 mm	255 mm
4	Max Sawing over bed	480 mm	480 mm	480 mm	480 mm	480 mm
5	Max Sawing over Cross Slide	285 mm	285 mm	285 mm	285 mm	285 mm
6	Max Sawing in gap	785 mm	785 mm	785 mm	785 mm	785 mm
7	Length of grap in front of face plate.	200 mm	200 mm	200 mm	200 mm	200 mm
8	Cross Slide Travel	270 mm	270 mm	270 mm	270 mm	270 mm
Main Spindle
9	Spindle Nose Dia/Threads	74.3 x 6 TPI	74.3 x 6 TPI	74.3 x 6 TPI	74.3 x 6 TPI	74.3 x 6 TPI
10	Spindle Bore	52 mm	52 mm	52 mm	52 mm	52 mm
11	No. of Spindle Speed	8	8	8	8	8
12	Range of Spindle R.P.M	30 to 550 R.P.M.	30 to 550 R.P.M.	30 to 550 R.P.M.	30 to 550 R.P.M.	30 to 550 R.P.M.
13	Range of Spindle Diameter	50 mm	50 mm	50 mm	50 mm	50 mm
TAIL STOCK SPINDLE
14	Tail Stock Spindle Travel	180 mm	180 mm	180 mm	180 mm	180 mm
15	Tail Stock Spindle Morse Taper	MT-4	MT-4	MT-4	MT-4	MT-4
Lead Screw
16	Diameter / Threads	38 mm x 4 TPI	38 mm x 4 TPI	38 mm x 4 TPI	38 mm x 4 TPI	38 mm x 4 TPI
17	No. of threads and pitch rang	Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI)	Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI)	Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI)	Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI)	Metric 13 (1 to 6 pitch) Inch 19 (2 to 24 TPI)
18	V-Belt	B - 73	B - 73	B - 73	B - 73	B - 73
19	Flat Belt	50 x 1900 mm	50 x 1900 mm	50 x 1900 mm	50 x 1900 mm	50 x 1900 mm

ELECTRICALS
Electirc motor of 3 HP / 2.25 k.w., 3 Phase, 1440 RPM with Panel board wirings, over load relay, Pushbutton switches, V-belts and fittings.

Standard Accessories	Optional Accessories
Set of change gears, Harden bed Centre Adapter, Dead Centers -2 Nos. Chuck plate 200mm & 270 mm Reversible Switch. V-belt (B-73) 2 Nos, Nylon flat Belt. Motor pulley. Tool post key. Plastic can, Oil can, Screw Driver. Spanner Nos - 3	Height of Centre-305 mm With above specifications. Three Speed Gear box. Six Speed Gear box Norton Gear Box Steady Rest Follow Rest 80 mm. Spindle bore Long Slide With Rear Tool Post. Taper Turning Attachment. Electirc Motor. Face Plate-440 mm & 610 mm Carrier Plate. Coolant pump With Tank
