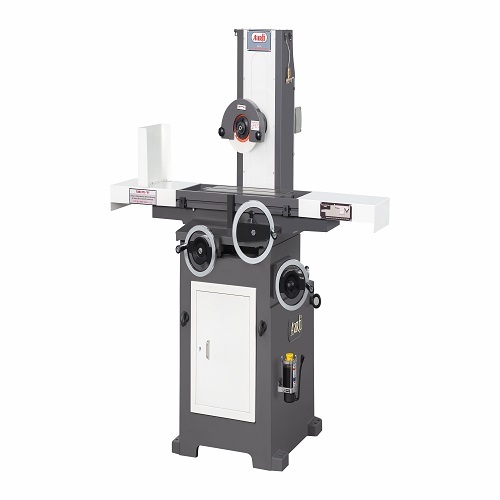

Manual Surface Grinding Machine

Name: Manual Surface Grinding Machine
Brand: Atul Machine Tools
Price: 251000.00 INR
Availability: InStock

Price 251000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Manual Surface Grinding Machine Specification

Product Type
SURFACE GRINDER

General Use
GRINDING

Material
Cast Iron

Type
Surface Grinding Machine

Weight (kg)
850 Kilograms (kg)

Computerized
No

Automatic
Yes

CNC Or Not
Normal

Control System
Manual

Table Size
450 X 225MM

Table Slide Way
V Type Rail

Magnetic Chuck Size
450 X 200 MM

Grinding Wheel Size
200 X 13 X 31.75MM

Grinding Wheel Speed
2800 RPM

Grinding Length
450 X 225 MM

Fuel Tank Capacity
40 Liter (L)

WorkingSpeed
1800MM

Spindle Speed
2800 RPM

Dimension (L*W*H)
1473.2 * 1219.2 * 1905 Millimeter (mm)

Warranty
1 Year against Manufacturing Defect.

Manual Surface Grinding Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
3 Months

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
WOODEN BOX PACKING WOODEN PELLET AS PER REQUIREMENT OF CLIENT

Main Domestic Market
All India

Certifications
NSIC

About Manual Surface Grinding Machine

'Atul Machine Tools' is one of the renowned name that is engaged in manufacturing, supplying and exporting Manual Surface Grinding Machine. This machine is used for efficient grinding of various surfaces of machines, tools and other equipment. Offered machine is known for their operational accuracy, easy usage, low maintenance, high efficiency and longer service life. Owing to the above mentioned features, our manufactured Manual Surface Grinding Machine is highly applauded in world market.

Other information:

The Base:The Machine is Built of Heavy duty cast iron with high Grade cast iron bese hand Scraped to fine tolerance to Achieve highest Accuracy. Designe Make Easy Movement of table Slide. By Proviing V-ways and flat ways duly hand Scraped to fine Tolerance to Achieve Highest Accuracy.
The Wheel Head: The Grinding Wheel spindle is hardened & Grounded. The Spindle Runs in Precision angular Contact Bearings and driven by flange Mounted Motor though Flexible Couplings, Ensuring through Free Service for a long life.
The Mocrofeed System: Vertical Grinding wheel Slide Movement down at right side in the body. The Vertical wheel dial least count in 0.01 mm. and Micro feed least count un 0.002 mm.

Specifications

Working Surface of the table	225 x 450 mm	300 x 600 mm
Maximum Height from table to Grinding Wheel	275 mm	275 mm
Vertical feed Leastcount	0.01 mm	0.01 mm
Microfeed Leastcount	0.002 mm	0.002 mm
Cross Feed Leastcount	0.05 mm	0.05 mm
Spindle Speed	2800 RPM	2800 RPM
Size of Grinding Wheel (Dia x Width x Bore)	200 x 13 x 31.75 mm	200 x 20 x 31.75 mm
Magnetic Chuck Recommended	200 x 450 mm	250 x 500 mm
Electric Motor Recommended	75K.W. 3 Phase 1 HP 2800 RPM	1.5K.W. 3 PH 2 HP 2800 RPM
App. Net Weight	-	-

Standard Accessories
Balancing Stand & Mandrel
Diamond Dressor
Lubrication Pump
Toolkit
One - Grinding Wheel with Flange

Optional Accessories
Permanent magnetic chuck
Coolant equipment
Machine lamp (230 v AC)
Wheel flange unit

Note: As improvement are made from time to time. These specifications are subject to change without notice and are not binding on us. inspection at our sight before delivery.
