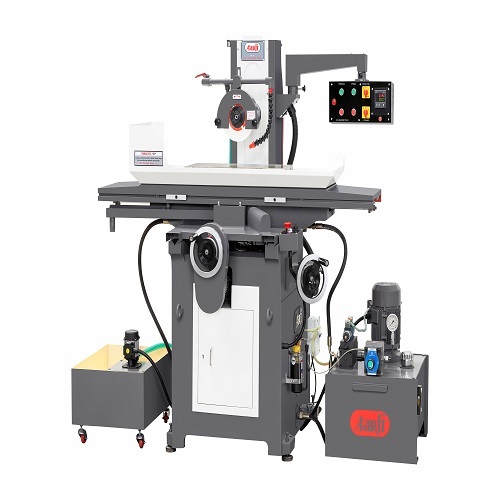

Send InquiryHydraulic Surface Grinding Machine 450 x 225 MM
Price 615000.00 INR/ Unit
MOQ : 1 Unit
Hydraulic Surface Grinding Machine 450 x 225 MM Specification
- Product Type
- Surface Grinding Machine
- Material
- Cast Iron
- Weight (kg)
- 925 Kilograms (kg)
- Computerized
- No
- CNC Or Not
- Normal
- Table Size
- 450 X 225MM
- Table Slide Way
- V Type Rail
- Magnetic Chuck Size
- 450 X 200MM
- Grinding Wheel Size
- 200 X 13 X 31.75
- Grinding Wheel Speed
- 2800 RPM
- Grinding Length
- 500 X 225MM
- Fuel Tank Capacity
- 40 Liter (L)
- Spindle Speed
- 2800 RPM
- Dimension (L*W*H)
- 1676.4 * 1397 * 1905 Millimeter (mm)
- Warranty
- 1 Year against Manufacturing Defect.
Hydraulic Surface Grinding Machine 450 x 225 MM Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID)
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 1 Months
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- WOODEN BOX PACKING WOODEN PELLET AS PER REQUIREMENT OF CLIENT
- Main Export Market(s)
- Asia, Central America, North America, South America, Australia, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- NSIC
About Hydraulic Surface Grinding Machine 450 x 225 MM
1. The Structure
The machine is built of heavy duty high grade cast iron Base is built of hand scraped to achieve fine tolerance accuracy Reciprocation table provide V Flat guide ways lining with TURCITE B for easy movement
2. The Wheel Head
The Wheel head spindle hardned ground runs with precision angularcontact bearings with imported greece to have long trouble free service and driven by flange mounted motor through flexible couplings
3. The Hydraulic System
Separete Hydraulic power pack is duty fitted with 24 V DC pielot operated Solenoid valve
4. The Cross Feed
The cross feed is through a lead screw and nut The automatic cross feed at every reversak if the table is provided through engaged with gear mechanisim and feed controlled by a solid state electronic system The cross feed is infinitely variable to get desirable accuracy and surface finish
5. The Micro feed system
Wheel head slide movement right side in the base Wheel head feed least count in 001 mm and microfeed least count in 0002 mm
