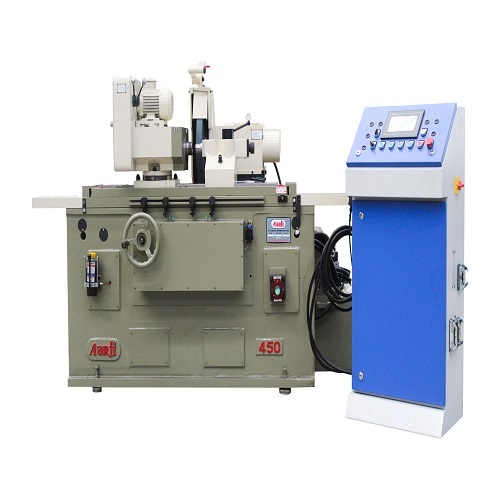

CNC Grinding Machine

CNC Grinding Machine

500000.00 INR/Piece

Product Details:

  • Computerized Yes
  • Automatic Yes
  • Control System PLC Control
  • Drive Type Electric
  • Grinding Diameter 100 Millimeter (mm)
  • Grinding Length 600 / 1000
  • Spindle Speed 1800 RPM
  • Supply Ability : 10 Piece Per Month
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 500000.00 INR/Piece

Product Specifications

  • Yes
  • Electric
  • 400 x 38 x 127 mm
  • 1800 RPM
  • PLC Control
  • 100 Millimeter (mm)
  • Yes
  • 1 year
  • Red & white
  • 600 / 1000

Trade Information

  • 10 Piece Per Month
  • 1 Months

Product Description

CNC Grinding Machine







GENERAL SPECIFICATION

SPECIFICATION

UNITS

600 MM

1000 MM

  CAPACITY

 MAX. GRINDING DIAMETER

mm

150

150

  MAX. GRINDING LENGTH

mm

600

1000

  MAX. WEIGHT OF THE JOB

Kg.

50

70

  WORK HEAD

  CENTER HIGHT

mm

165

165

  SPINDLE NOSE

MT

4

4

  SPINDLE SPEED ( INFINITELY VARIABLE )

rpm

30-600

30-600

  SPINDLE MOTOR POWER

H.P.

1

1

  MAXIMUM SWIVEL

DEG.

± 45

± 45

  GRINDING SPINDLE

  CARTIDGE TYPE GRINDING SPINDLE

rpm

1750

1750

  PERIPHERAL (SURFACE) SPEED

m/Sec

30

30

  GRINDING WHEEL SIZE(ODXWIDTHXID)

mm

400 X 50 X 127

400 X 50 X 127

  SPINDLE MOTOR POWER

KW / H.P.

3.75/5

3.75/5

  AXIS



  X AXIS STROKE

mm

175

175

  Z AXIS STROKE

mm

750

1150

  RAPID FEED RATE FOR X & Z AXIS

m/min

15

15

  MINIMUME RESOLUTION

mm

0.001

0.001

  AXIS  SERVO MOTOR POWER  X/Z

Nm

6/8

6/11

  TAILSTOCK

  CENTER TAPER

MT

4

4

  QUILL TRAVEL

mm

25

25

  ELECTRICAL

  TOTAL CONNECTED LOAD H.P.



15

15

  SUPPLY VOLTAGE



 3 P.H. 415 V AC ,50 HZ

  FLOOR PLAN



   Space Area (L x W Approx)

mm

3000x2000

4500x2000

   Weight of Machine ( Approx )

Kg.

3250

4500











SALIENT FEATURES

  STRUCTURE

  All major structure parts are manufactured by high grade casting  heavily ribbed  for higher rigidity & better

   damping characteristic

  X and Z Axis Precision manual scraped V and flat guide ways coated with Turcite-B.



  STANDARD FEATURES & ACCESSORIES

  AC Servo Axis Drive for X and Z.

  servo motor with IP 65 protection

  Precision Ground Ball Screw for Both Axis

  Cartridge Type Grinding Spindle

  Automatic Centralized & Programmable Lubrication System.

  Auto & Manual Coolant System.

  Coolant tank with magnetic coolant separator.

  Wheel Balancing Arbour.

  CONTROLEER SPECIFICATIONS

  Siemens 802D G/N 2 Axis Servo Controller with standard Built -in Grinding Cycles.

  Simultaneous 2 Axis Control, Grinding Cycles / Dressing Cycles.

  Auto referencing .RS 232 C Serial Interfaces Port. CF CARD Interface, Inch / Metric Switchable

  Pitch error & Back Lash compensation.

  G code / M code compatibility with other NC Builders.

  Electronic Hand wheel.



  OPTIONAL ACCESSORIES

  V-needle  slide

  Liner Glass Scale.

  In process gauging system, Flagging probe, Air gap Eliminator & Crash Detector.

  Paper band with Magnetic Coolant filtration system.

 Wheel Head Motor With VFD For Constant Surface Speed

  Grinding Wheel  500x50x203.2 mm. with 5.5 KW Motor

  Servo Voltage Stabilizer.

  Fanuc Controller



Note :- illustration & Specifications are subject to change without prior notice
